64-74 GM FRONT DISC BRAKE KIT,12.19" DRILLED ROTORS,4 PISTON DYNALITE BLACK CAL.

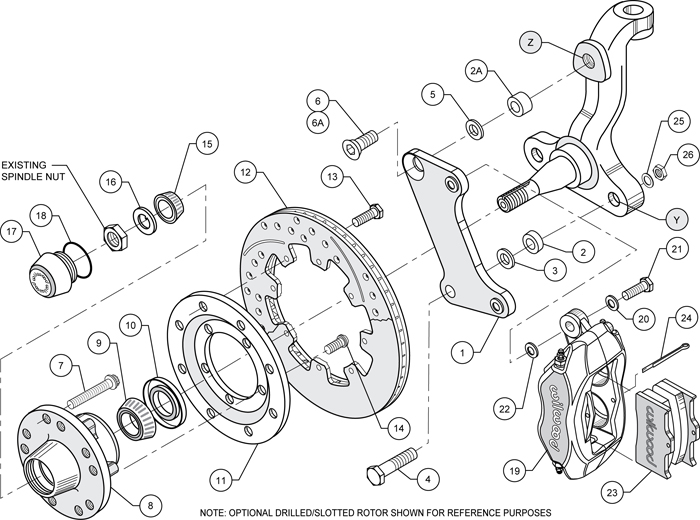

ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED
WILWOOD FORGED DYNALITE BIG BRAKE FRONT HUB KIT & 12.19" DISC BRAKE KIT FOR: *CHEVROLET CAMARO & PONTIAC FIREBIRD: -1967-1969 WITH DISCS OR DRUM SPINDLES
*CHEVY II: -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS
*CHEVROLET NOVA: -1967-1974 WITH DISCS OR DRUM SPINDLES
*CHEVELLE, MONTE CARLO, MALIBU, & EL CAMINO: -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS -1967-1972 WITH DISCS OR DRUM SPINDLES
*OLDSMOBILE CUTLASS, F85 VISTA CRUISER, 4-4-2, & CALAIS: -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS -1967-1972 WITH DISCS OR DRUM SPINDLES
*PONTIAC GTO, LEMANS, GRAND AM, GRAND LEMANS, TEMPEST, & T37: -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS -1967-1972 WITH DISCS OR DRUM SPINDLES
*BUICK REGAL, CENTURY, LUXUS, SKYLARK, & SPECIAL: -1964-1966 WITH DRUM SPINDLES WITH MINOR MODIFICATIONS -1967-1972 WITH DISCS OR DRUM SPINDLES
FEATURING DRILLED & SLOTTED ROTORS
WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
FDL BIG BRAKE FRONT HUB KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS & VINTAGE RODS
FORGED BILLET DYNALITE CALIPERS, 12.19" DIAMETER ROTORS, & HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER TO ALLOW THESE KITS TO BE USED IN ALMOST ANY HIGH-PERFORMANCE APPLICATION
KIT INCLUDES: *DRILLED & SLOTTED, .810" THICK x 12.19" O.D. ROTORS, *FORGED DYNALITE CALIPERS - BLACK, *CALIPER MOUNTING BRACKETS, *BP-10 BRAKE PADS, *HUBS, *BEARINGS, *SEALS, & *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
