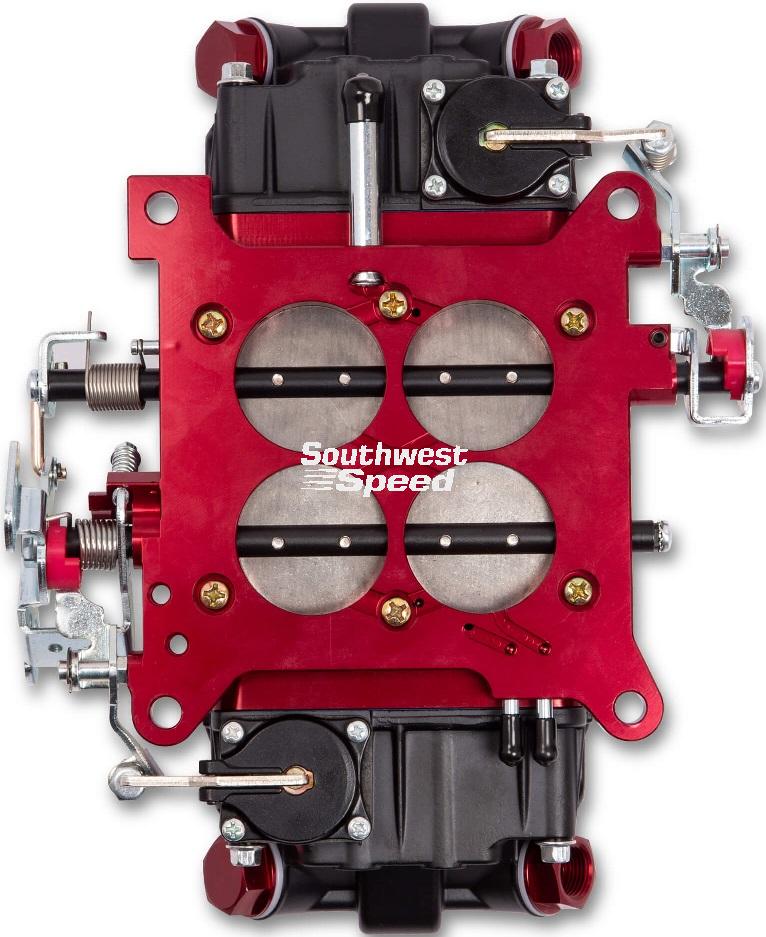

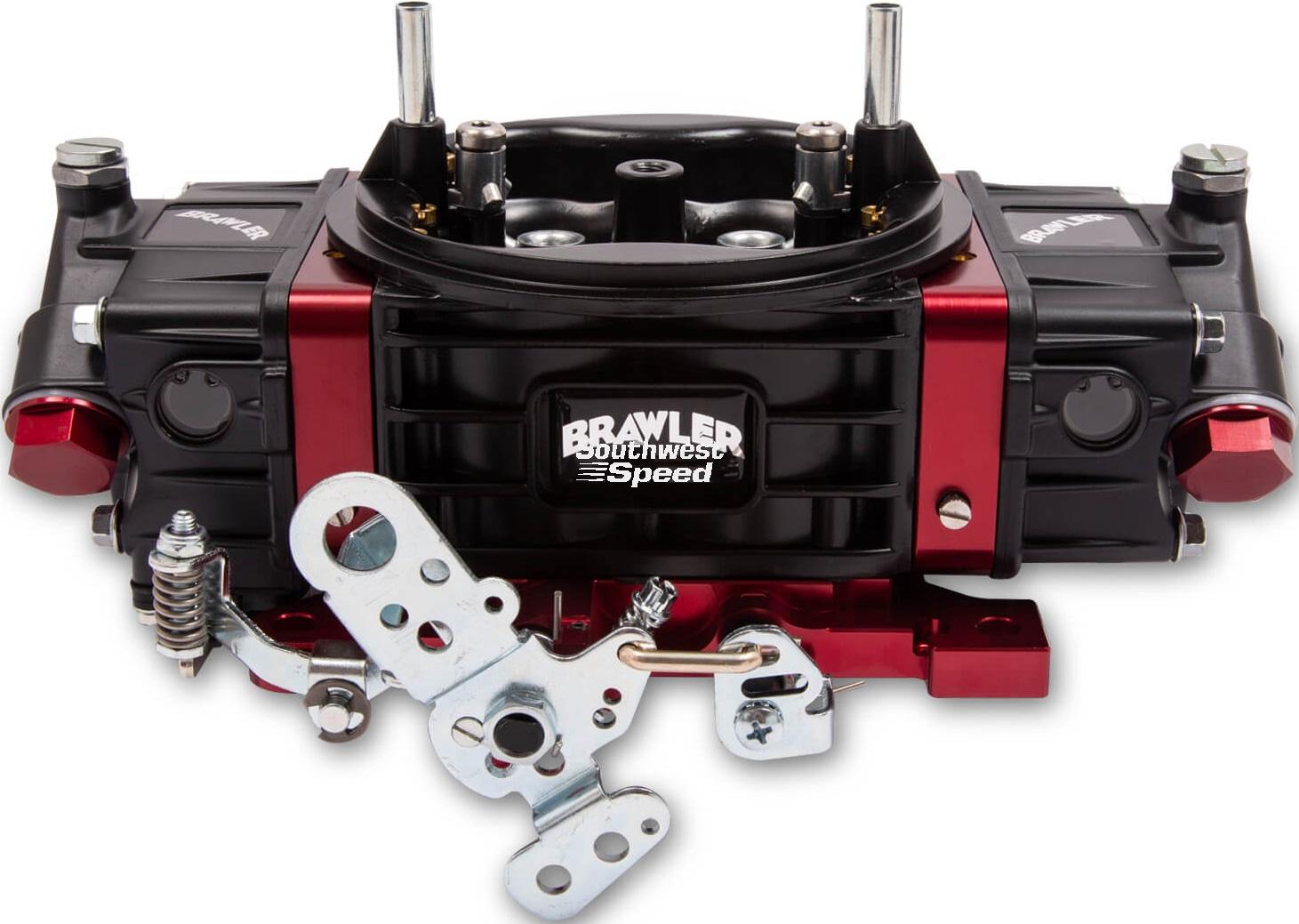

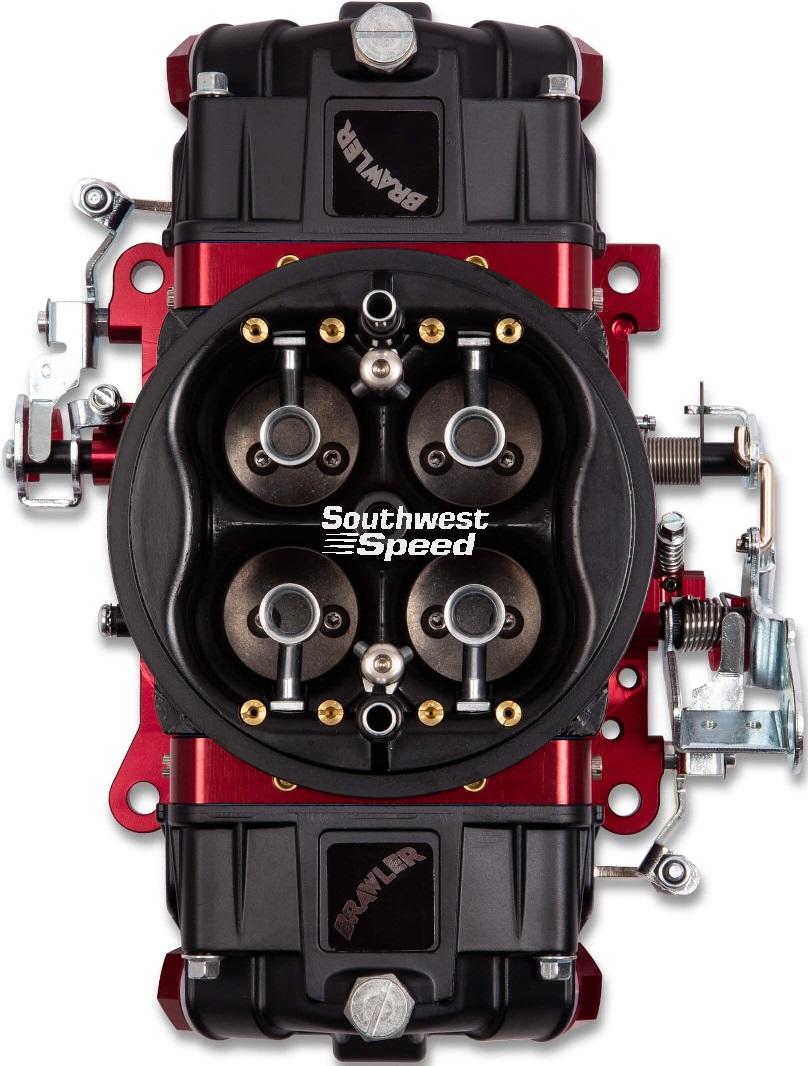

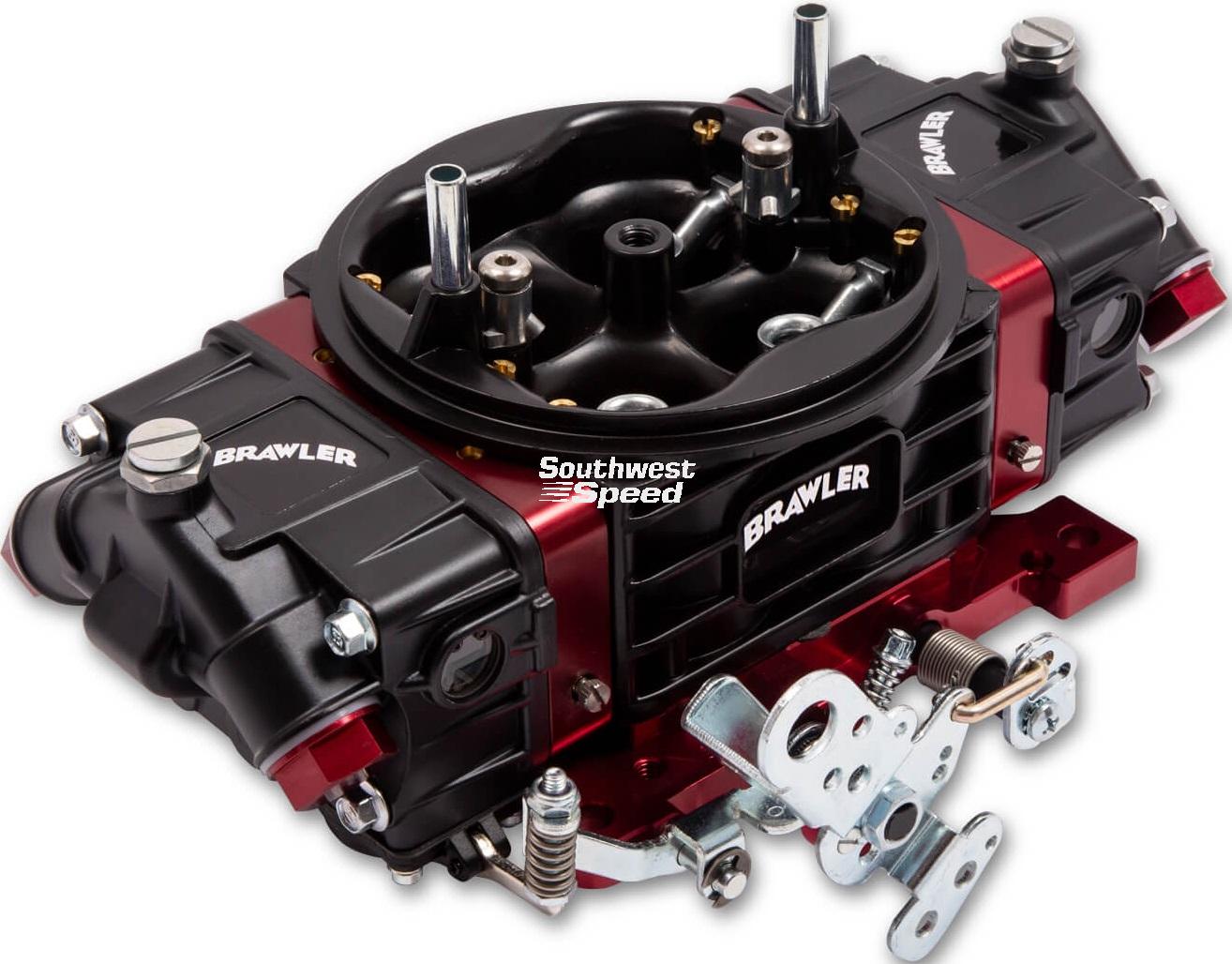

BRAND NEW HOLLEY QUICK FUEL 750 CFM BRAWLER RACE CARBURETOR, RED BILLET & BLACK FINISH, MECHANICAL SECONDARIES, COMPATIBLE WITH 4150 MODELS
THE 3RD PHASE OF NEW BRAWLER CARBURETORS BUILD ON THE SUCCESS OF THE ORIGINALS BY ADDING MORE CFM SIZES & A BLACK COATED FINISH WITH RED BILLET METERING BLOCKS & THROTTLE BODIES. BRAWLERS COME WITH THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR MODERN STREET OR RACE ENGINE DEMANDS. THEY ARE ALL MADE FROM LIGHT-WEIGHT ALUMINUM COMPONENTS & OFFER ALL THE TUNABILITY THAT YOU WOULD FIND FROM MORE EXPENSIVE CARBURETORS IN THE MARKET.
NOTE: THIS MODEL OF CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. REPLACES HOLLEY, EDELBROCK, CARTER AFB & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. SPREADBORE STYLE INTAKE MANIFOLDS NEED AN ADAPTER TO INSTALL THIS CARBURETOR. SIMILAR TO MR. GASKET #1932.
FEATURES:
THE LATEST TECHNOLOGY IN AIR/FUEL CALIBRATIONS FOR STREET OR RACE ENGINE DEMANDS MECHANICAL SECONDARIES
DUAL INLET FUEL BOWLS WITH SIGHT GLASS WINDOWS FOR SAFE & EASY FLOAT ADJUSTMENTS
CHANGEABLE IDLE & HIGH SPEED AIR BLEEDS FOR EASY TUNING ALONG WITH 4-CORNER IDLE ADJUSTMENT
PERFORMANCE MODELS INCLUDE BILLET METERING BLOCKS & THROTTLE BODIES WITH PRECISION THROTTLE SHAFTS TO ENSURE LONG TERM PERFORMANCE
BLACK COATED FINISH FOR CORROSION PROTECTION & GOOD LOOKS
SPECS:
BARRELS: 4
BILLET COLOR: RED
BOOSTER: DOWN LEG
CFM: 750
CHOKE: NONE
CIRCUIT: 2
FINISH: BLACK
FUEL: GASOLINE
FUEL INLET: DUAL
FUEL SYSTEM: CARBURETED
HIGH SPEED AIR BLEED: 33
IDLE AIR BLEED SIZE: 70;70
MARINE USE: NO
MATERIAL: ALUMINUM
MODEL: BRAWLER RACE
PRIMARY MAIN JET: 74
PRIMARY POWER VALVE: 4.5
PRIMARY PUMP NOZZLE SIZE: 31
PRIMARY VENTURII SIZE: 1.380"
PRODUCT TYPE: CARBURETOR
SECONDARIES: MECHANICAL
SECONDARY MAIN JET: 84
SECONDARY VENTURII SIZE: 1.380"
SUPERCHARGED APPLICATION: NO
THROTTLE BORE: 1-11/16"
YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
